Overview

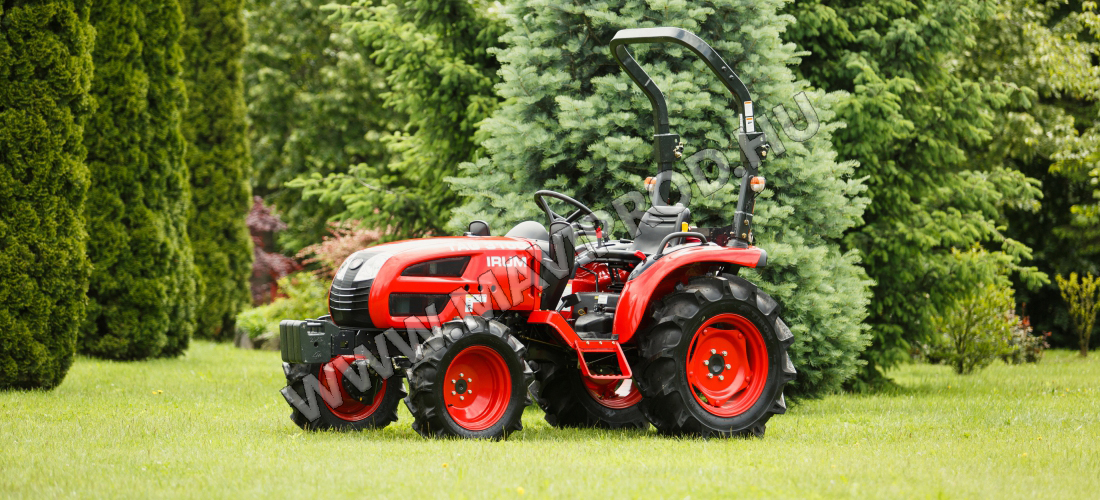

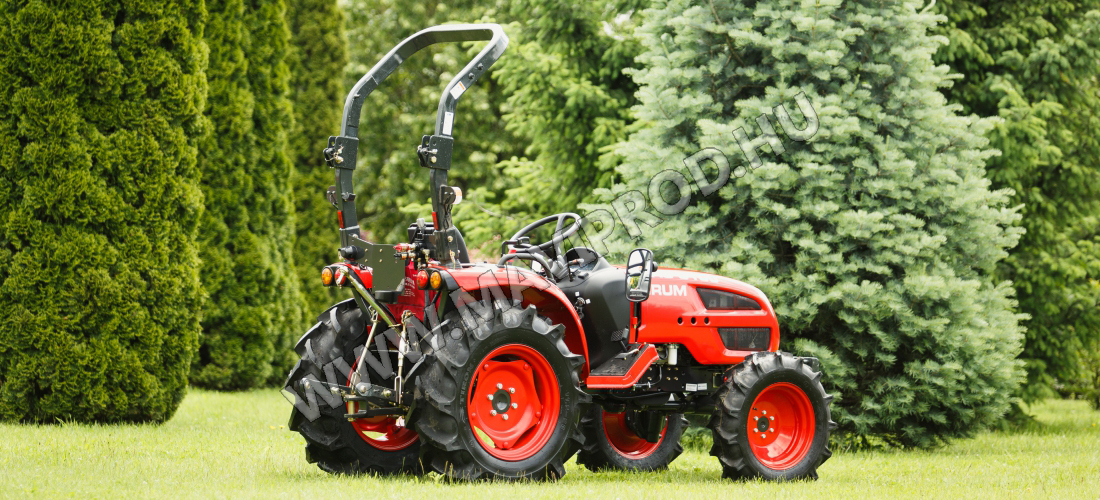

A tractor suitable for family farms with small areas of land and not only. Being small in size and without a cab, it successfully manages the works in vegetable growing, solariums, viticulture, fruit growing, but it can also show its value in the field, in the works of mowing, raking and not only.
It successfully combines operator comfort and high productivity, with an affordable cost.
Note: The total height and ground clearance may vary depending on the size of the tires that the tractor is fitted with.
Technical details
| TECHNICAL CHARACTERISTICS |
| Model |
TAG 24RH |
| Engine |
Diesel, 3 cylinders, liquid based cooling |
| Pollution standard |
Stage V |
| Cylinder capacity |
1 175 cm3 |
| Power |
24 HP (18 kW) |
| Maximum torque |
65 Nm at 2100 rpm |
| Air filter |
Dry with filtering element |
| Fuel tank |
23 l |
| TRANSMISSION |
| Gearbox |

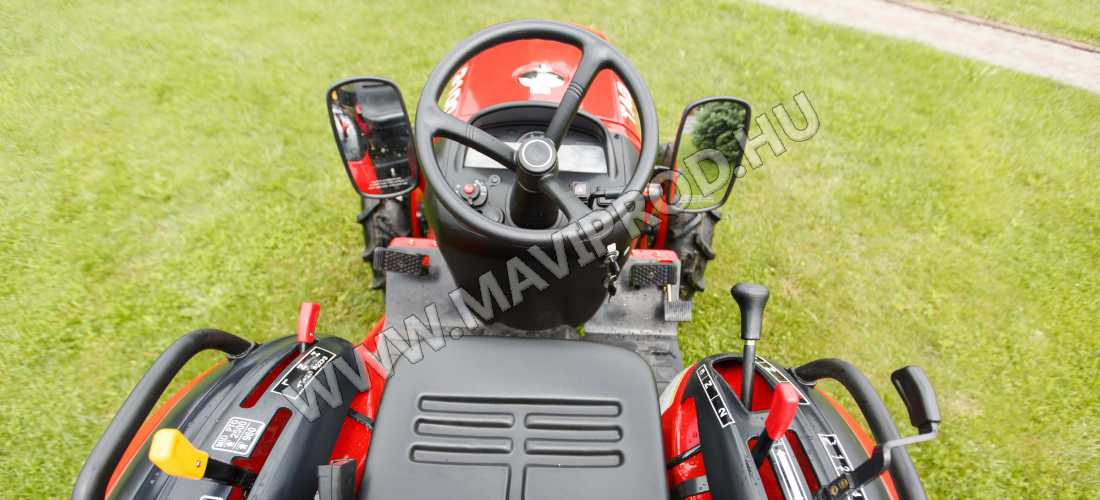

The 2-range hydrostatic transmission provides unlimited variable speed from 0-25.8 km / h. The range selector is located on the left side of the seat. 2 directional pedals are fitted for use with the right foot, the left pedal moves the tractor forward and the right pedal moves the tractor backwards. |
| Clutch |
single-plate dry |
| Differential lock |
Mechanical |
| Traction |
4×4 |
| 4×4 traction coupling |
electrohydraulic |
| Rear power take-off |
Independent with 540/960 rpm with 6 splines |
| PTO power |
18 HP |
| PTO power |
18 HP |
| Forward travel speed |
0 – 25,8 km/h |
| HYDRAULIC SYSTEM |
| Direction |
Hydrostatic, flow rate 13 l/m |
| Hydraulic pump flow rate |
18,2 l/min |
| Hydraulic system |
1 hydraulically operated hydraulic valve and 1 pair of hydraulic couplings behind the tractor |
| REAR FRAME |
| Hydraulic rear lift |
Three-point linkage, rapid couplings cat. I |
| Max. lifting capacity |
650 kg |
| Mechanism |
Mechanical position control |
| Drawbar |
Fixed |
| Operator chair |
With mechanical suspension and seat belt |
| Side mirrors |
Yes |
| Electrical installation |
12 V general contact, 7-pin trailer socket on the rear of the tractor |
| Lighting system |
For traffic on public roads |
| TIRES |
| Front |
7-16, with fixed rims |
| Rear |
11,2-20, with adjustable rims |
| MISCELLANEOUS |
| Mudguards rear |
Yes |
| Front weighing |
3 x 20 kg with integrated towing hook |
| Length |
3 122 mm |
| Width |
1 369 mm |
| Height |
2321 mm* |
| Wheelbase |
1 670 mm |
| Net weight |
956 kg, without counterweights |
| Ground clearance |
417 mm* |
| BRAKING SYSTEM |
| Service brake |
Multi-disc in oil bath (rear axle) |
| Parking brake |
With manual operation |
Note:
The total height and ground clearance may vary depending on the size of the tires that the tractor is fitted with.
